Is Traditional Machine Learning Useless?

Given the Boom of Deep Learning Approaches

Mario Graff

INFOTEC

INFOTEC

Aguascalientes, México

INFOTEC

Centro Público de Investigación del Gobierno Federal, que contribuye a la Transformación Digital de México, a través de la investigación, la innovación, la formación académica y el desarrollo de productos y servicios TIC. Sus alcances abarcan al sector público y privado, habilitando caminos que conduzcan hacia un México moderno y de inclusión digital.

INGEOTEC

GitHub: https://github.com/INGEOTEC
WebPage: https://ingeotec.github.io/

Introduction

Definitions

Artificial Intelligence (AI)

Theory and development of computer systems able to perform tasks that normally require human intelligence, such as visual perception, speech recognition, decision-making, and translation between languages.

Machine Learning

Machine learning (ML) is a subfield of artificial intelligence that focuses on the development and implementation of algorithms capable of learning from data without being explicitly programmed.

Natural Language Processing (NLP)

NLP is a branch of artificial intelligence (AI) that uses machine learning and other technologies to enable computers to understand, process, and manipulate human language.

AI Perception

How we look at it

How I see it

Machine Learning

Linear Classifier

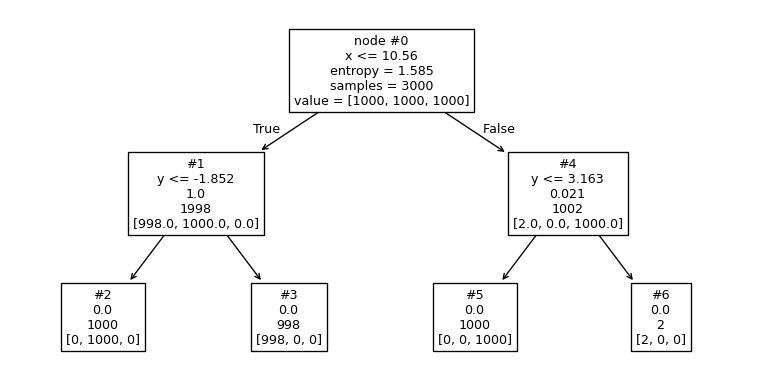

Decision Tree

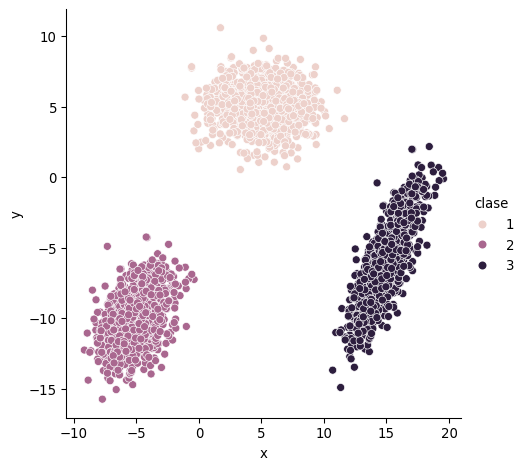

Problem

Classifier

Natural Language Processing

Text Classification

Definition

The aim is the classification of documents into a fixed number of predefined categories.

Polarity

El día de mañana no podré ir con ustedes a la librería

Negative

Training set

https://ingeotec.github.io/Delitos

texto etiqueta
0 Aut. Acapulco-Cuernavaca, km 100, incidente, c... N
1 #CDMX Hallan cuatro cuerpos en la carretera Pi... P
2 @PepaHoffmann Y su hijo violador ya está en la... N
3 Caos en Dallas luego de que hombres armados ma... P
4 @josemata1974 @amacasqui @diegobravorayo @Cami... N
5 Al llegar, encuentran el cuerpo de la niña qui... P
6 @torrents_d @KRLS @QuimTorraiPla putos botifle... N
7 Chofer de autobús escolar ebria es detenida po... P

Linear Classifier

Text Representation

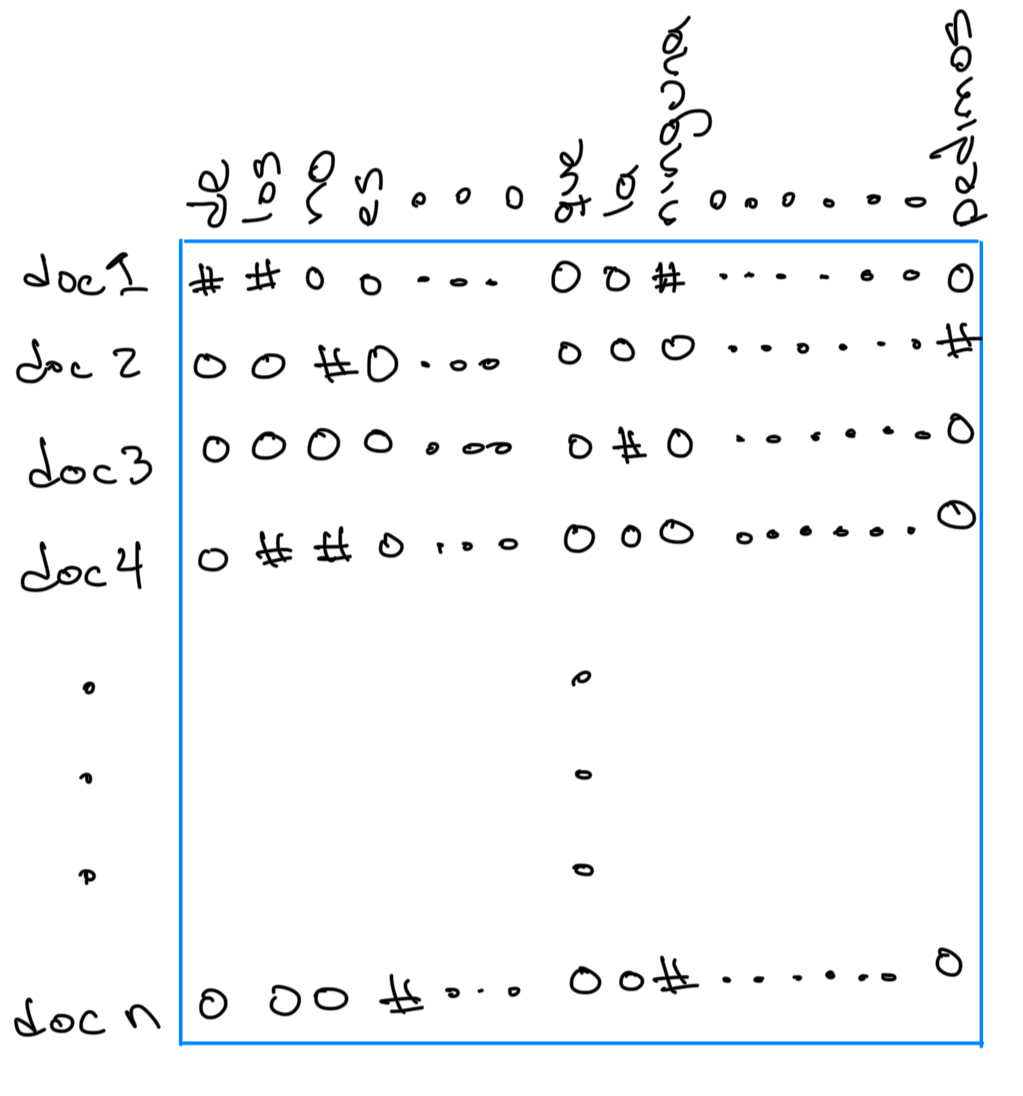

Bag of Words

Text Representation (2)

Associate token \(t\)

\[ \mathbf{v_t} \in \mathbb R^d \]

Bag of words

\[ \mathbf x = \frac{\sum_t \mathbf{v_t}}{\lVert \sum_t \mathbf{v_t} \rVert} \]

Orthogonal

\[ \forall_{i \neq j} \mathbf{v_i} \cdot \mathbf{v_j} = 0 \]

Consequences

  • No similarity between tokens
  • High dimension

Text Representation (3)

Document / TFIDF

Segmentación

from encexp.text_repr import SeqTM
seq = SeqTM()
seq.tokenize('Es un placer estar con ustedes')
['es', 'un', 'placer', 'estar', 'con', 'ustedes']

Representación

from encexp.text_repr import SeqTM
seq['Es un placer estar con ustedes']
[(1144, np.float64(0.17310726187637004)),
 (7829, np.float64(0.18087521410848678)),
 (2463, np.float64(0.6784430819531494)),
 (1204, np.float64(0.4246144937481326)),
 (663, np.float64(0.18792613863512314)),
 (7854, np.float64(0.5112918104893687))]

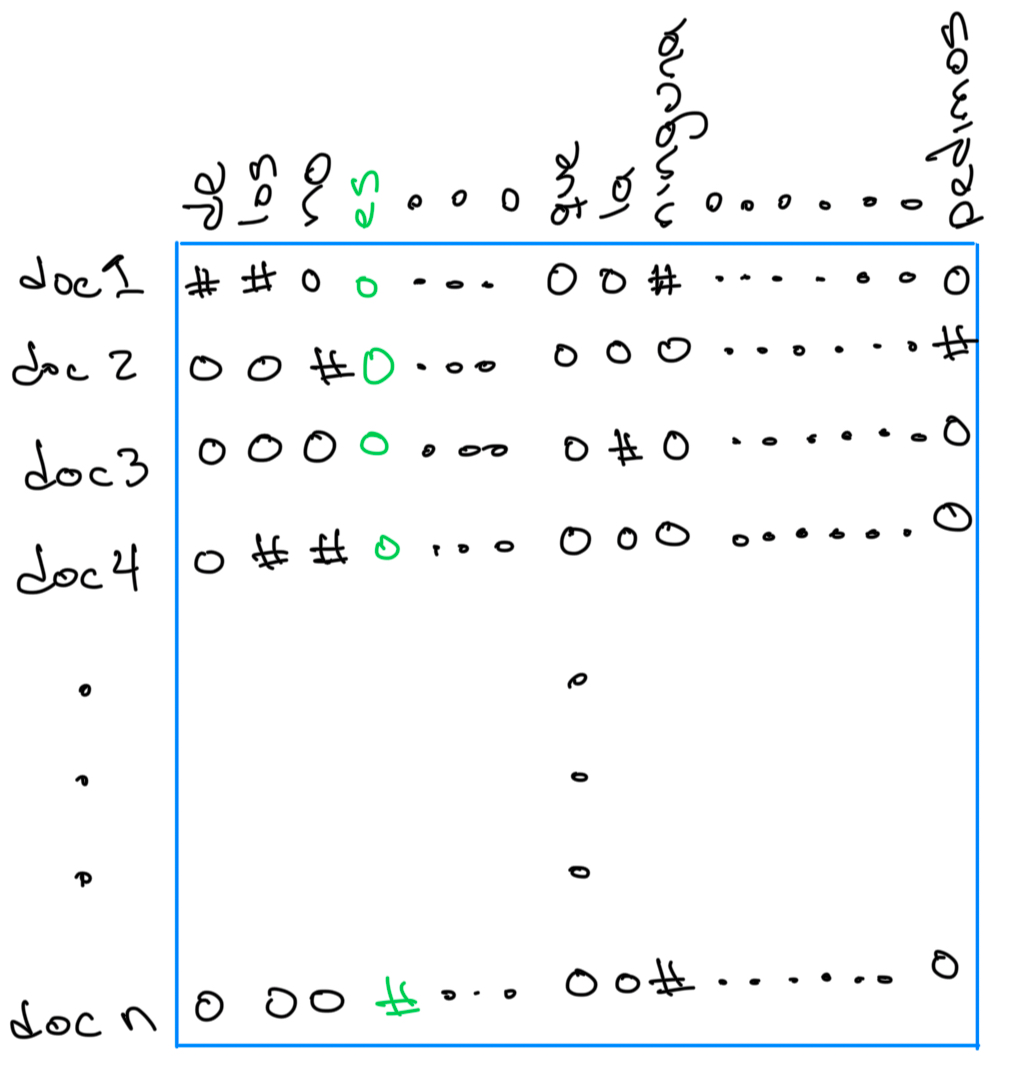

Self-supervised Learning

Select a token

Supervised learning

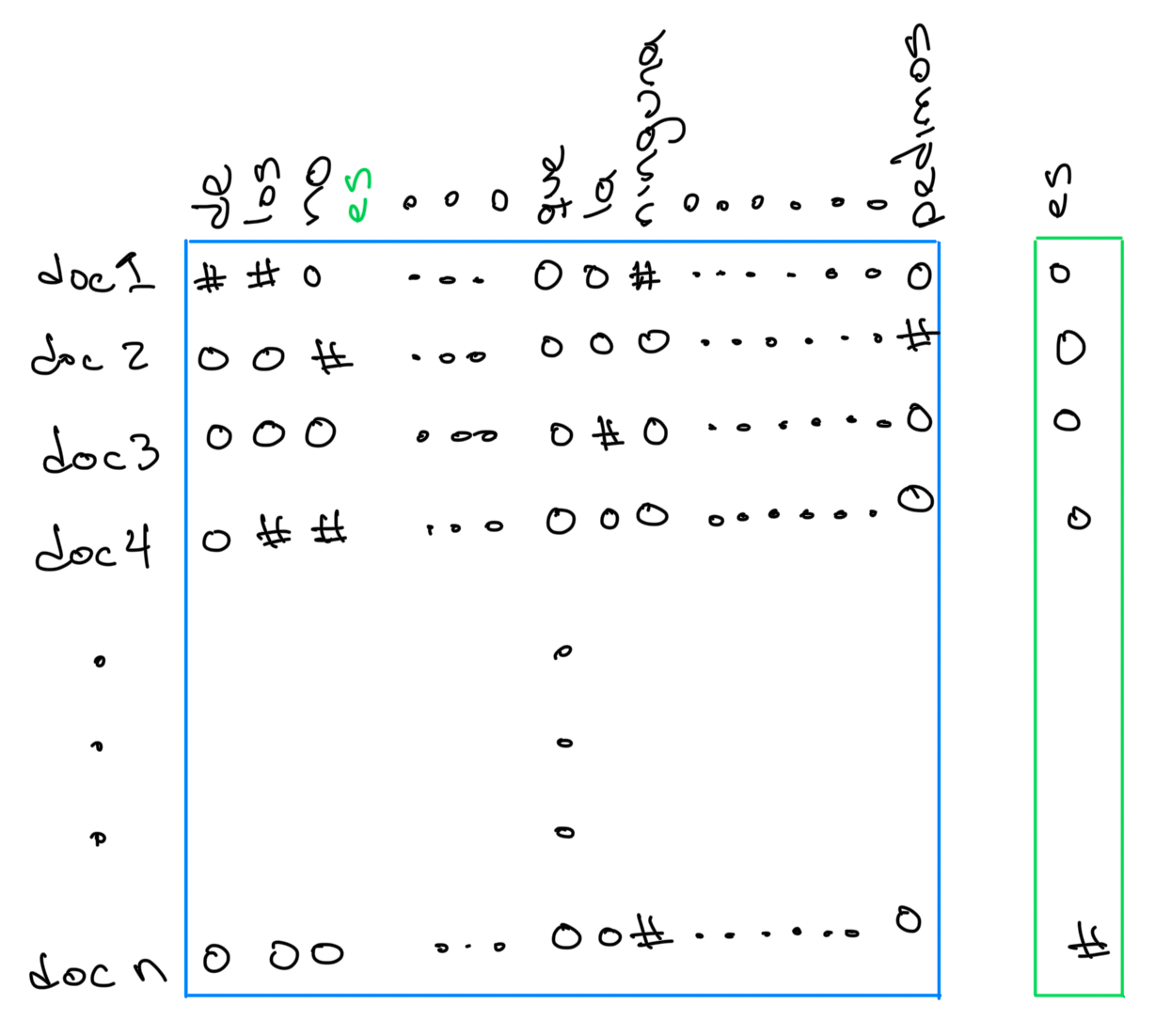

Self-supervised Learning (2)

Classification

CBOW

  • \(\mathbf h = s(A \mathbf x)\)
  • \(\mathbf y = s(A_2 \mathbf h)\)
  • \(\mathbf x \in \mathbb{R}^d\), \(A \in \mathbb{R}^{(300, d)}\),
  • \(\mathbf h \in \mathbb{R}^{300}\), and \(A_2 \in \mathbb{R}^{(d, 300)}\)

Dense representation

  • Columns of \(A\)

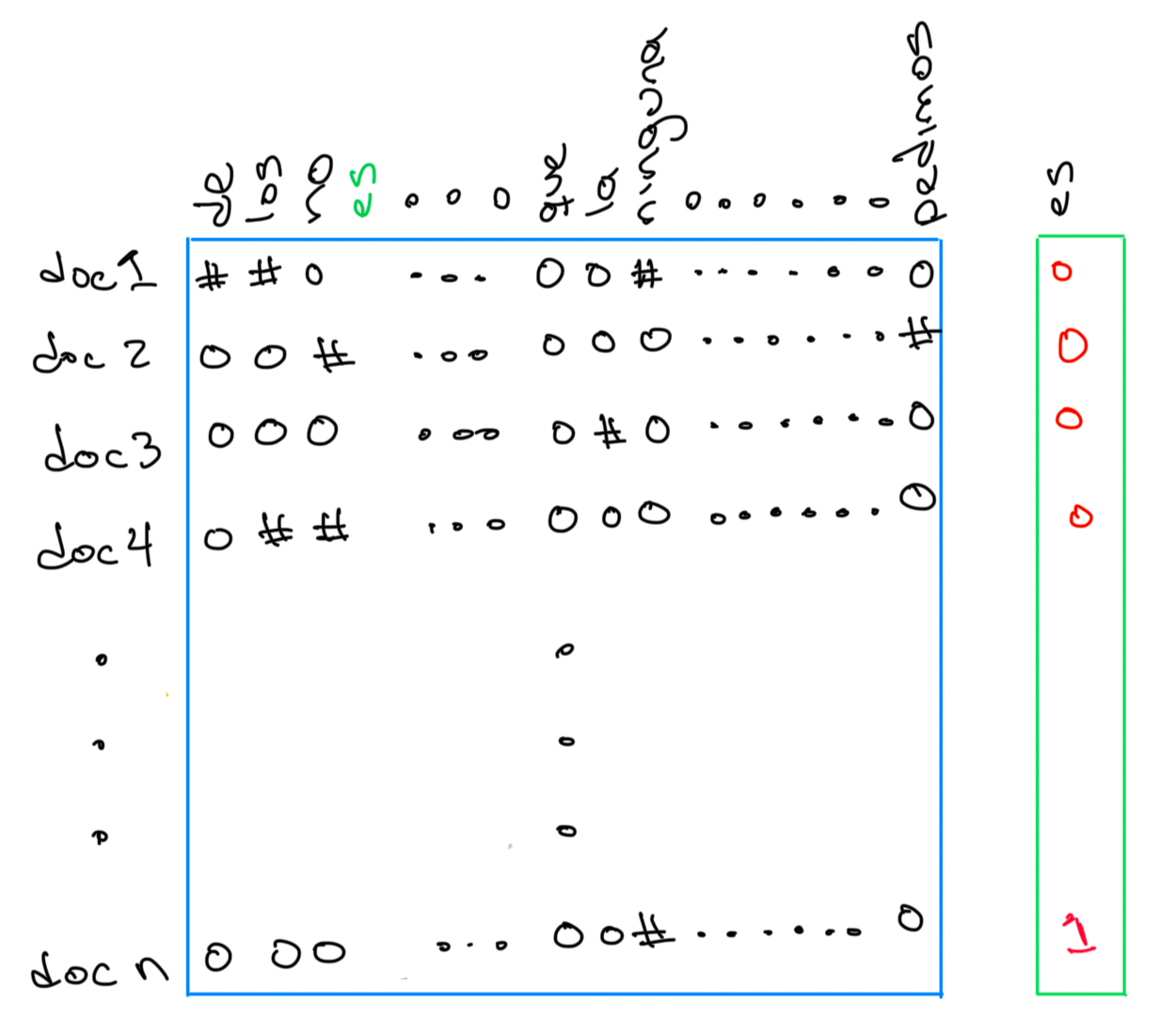

Self-supervised Learning (3)

Classification

Linear Classifier

  • \(y_t = \textsf{sign}(\mathbf w_t \mathbf x)\)
  • \(\mathbf x \in \mathbb{R}^d\), \(\mathbf w_t \in \mathbb{R}^d\)

Dense representation

  • \(\mathbf w_t\)
  • e.g., \(d = 2^{13}\), and \(t=1,\ldots,2^{13}\)
  • \(W \approx\) 67M

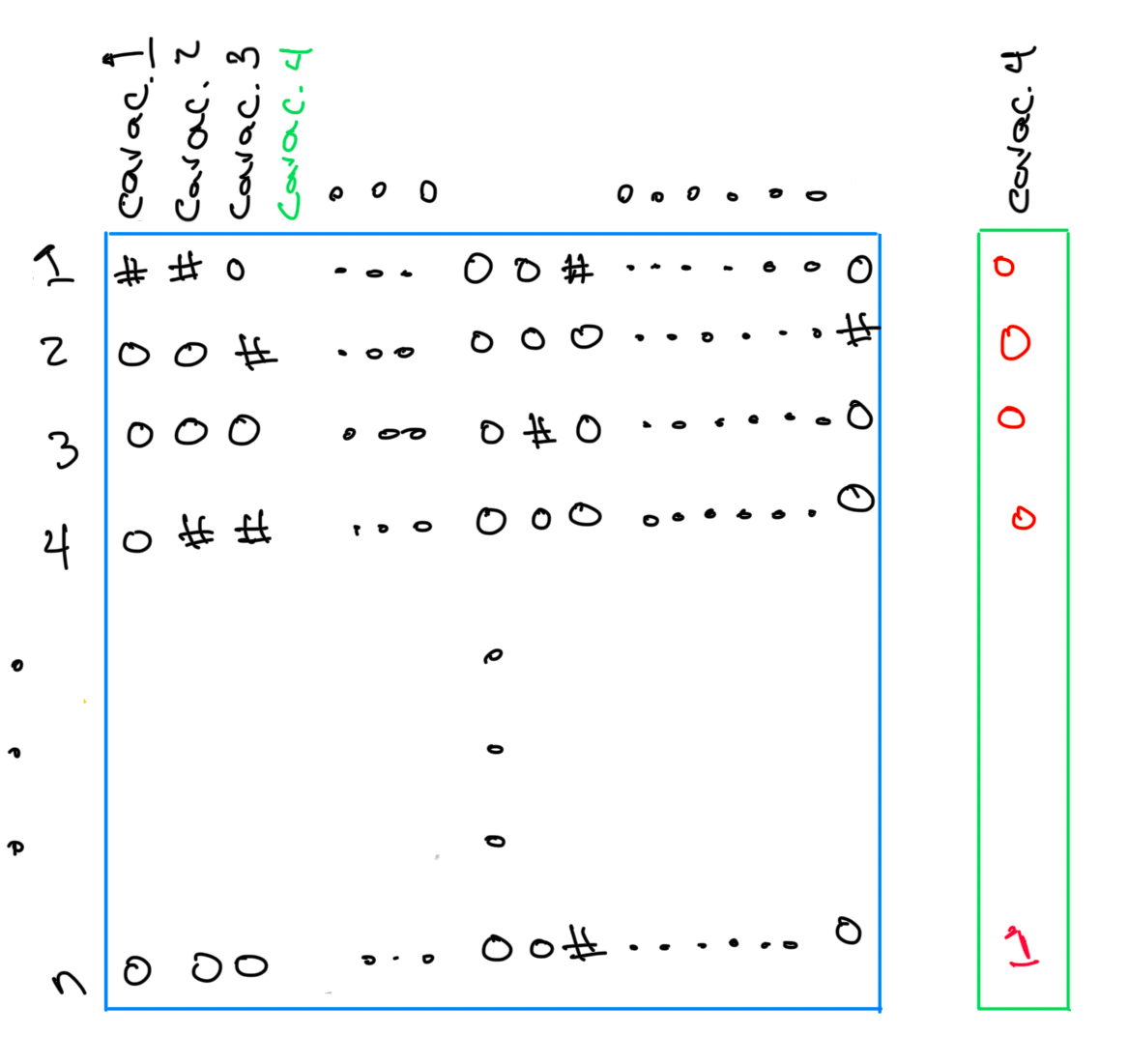

Self-supervised Learning (4)

Classification

Outside NLP

  • Missing values
  • High dimension / rare events

Contextual Representation

Attention is All you Need

(Vaswani et al. 2017)

BERT

(Devlin et al. 2019)

Attention

Equation

\[ \textsf{att}(Q, K, V) = \textsf{softmax}(\frac{QK^\intercal}{\sqrt{d_k}}) V \]

Parts

  • \(Q^{(\ell, d_a)} = H^{(\ell, d_h)}Q^{(d_h, d_a)}\)
  • \(K^{(\ell, d_a)} = H^{(\ell, d_h)}K^{(d_h, d_a)}\)
  • \(V^{(\ell, d_a)} = H^{(\ell, d_h)}V^{(d_h, d_a)}\)

Analysis

  • \(W^{(\ell, \ell)} = \textsf{softmax}(\frac{QK^\intercal}{\sqrt{d_k}})\)
  • \(\textsf{att}(Q, K, V)^{(\ell, d_a)} = W^{(\ell, \ell)} V^{(\ell, d_a)}\)
  • \(H^{(\ell, d_h)} \rightarrow \textsf{att}(Q, K, V)^{(\ell, d_a)}\)

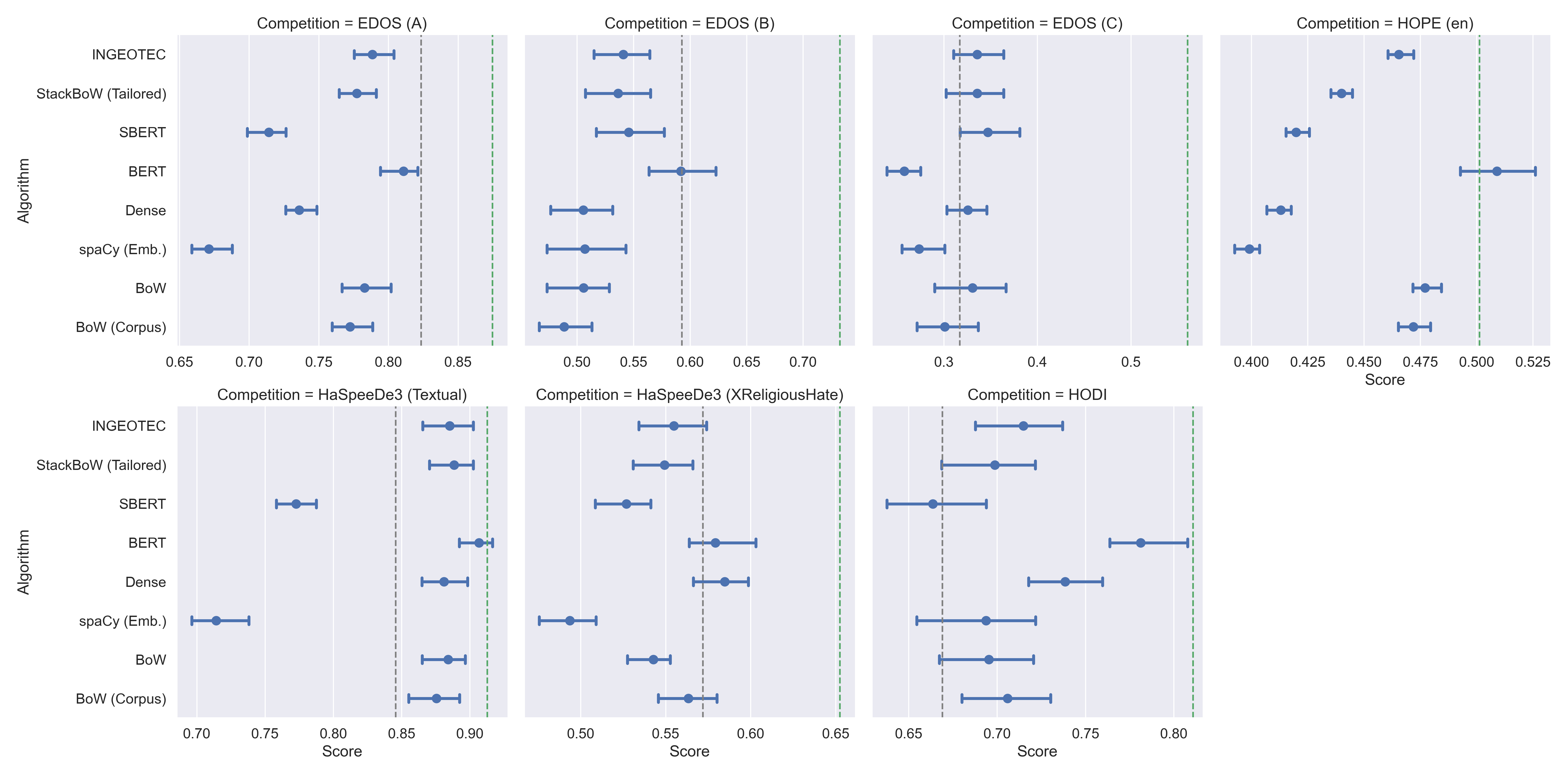

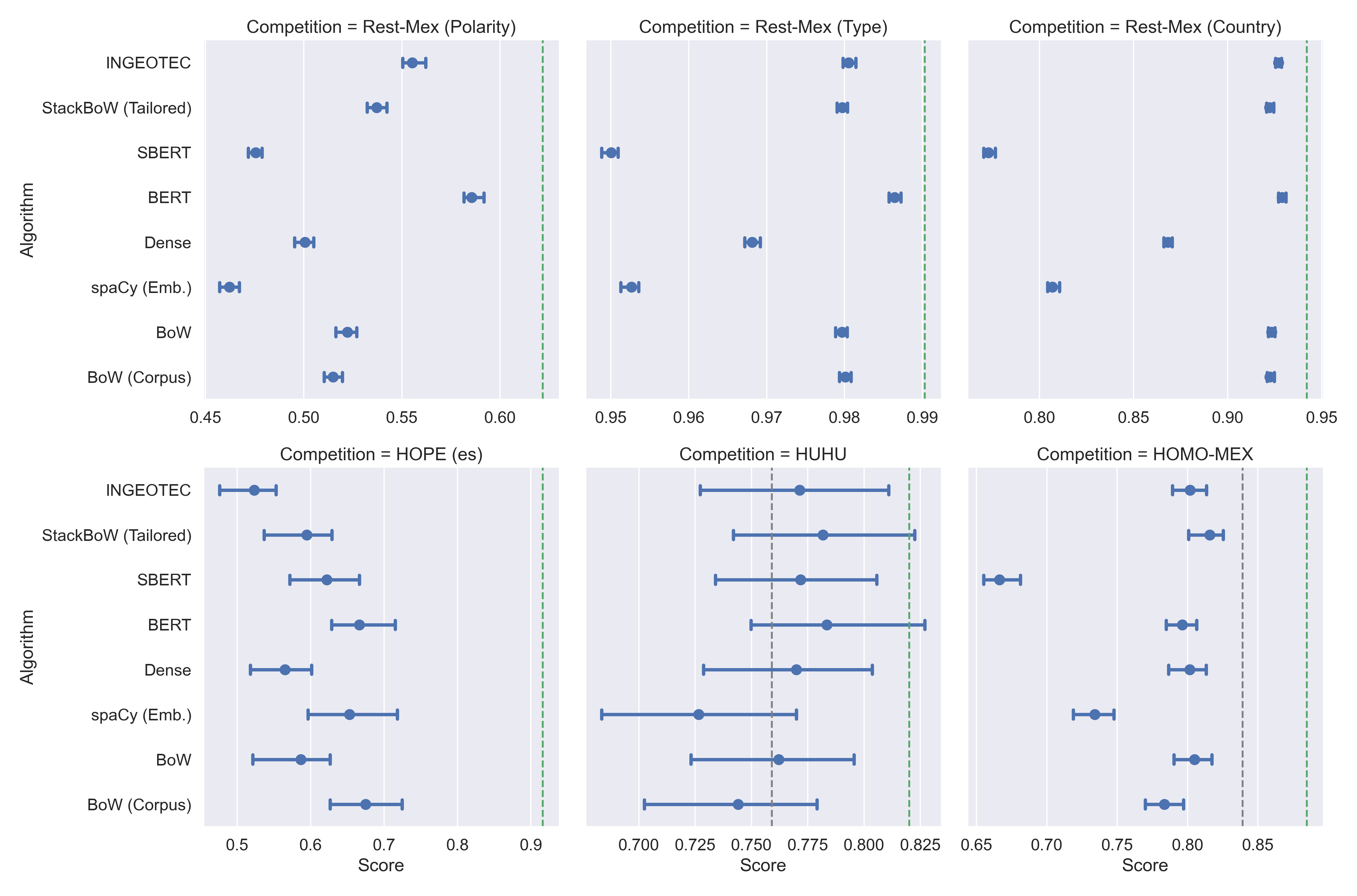

Performance

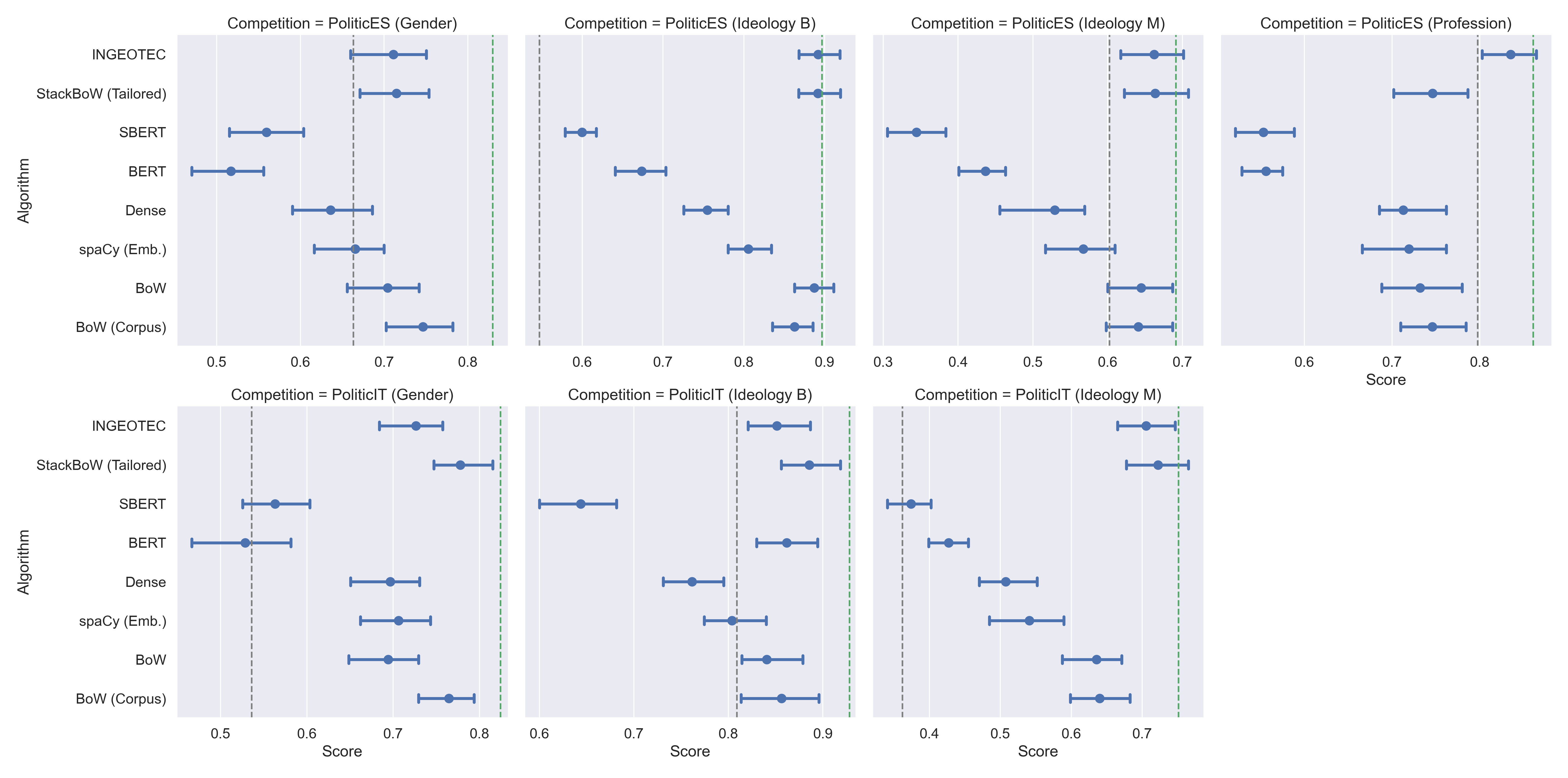

Author Profiling

English / Italian

Spanish

Conclusions

Definiciones

  • Artificial Intelligence
  • Machine Learning
  • Text Classification
  • Bag of Words
  • Sparse Representation
  • Dense BoW

Referencias

Bormuth, John R. 1968. “Cloze Test Readability: Criterion Reference Scores.” Journal of Educational Measurement 5 (3): 189–96.
Devlin, Jacob, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. 2019. “BERT: Pre-Training of Deep Bidirectional Transformers for Language Understanding.” In Proceedings of the 2019 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long and Short Papers), edited by Jill Burstein, Christy Doran, and Thamar Solorio, 4171–86. Minneapolis, Minnesota: Association for Computational Linguistics. https://doi.org/10.18653/v1/N19-1423.
Vaswani, Ashish, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Łukasz Kaiser, and Illia Polosukhin. 2017. “Attention Is All You Need.” In Advances in Neural Information Processing Systems, edited by I. Guyon, U. Von Luxburg, S. Bengio, H. Wallach, R. Fergus, S. Vishwanathan, and R. Garnett. Vol. 30. Curran Associates, Inc. https://proceedings.neurips.cc/paper_files/paper/2017/file/3f5ee243547dee91fbd053c1c4a845aa-Paper.pdf.
